ArchiveIngress Extions & Gateway API 찍먹

Ingress Extensions

Ingress Controller에 다양한 Extensions를 추가하여 확장하는 형태에 대해 다루어봅니다.

auth proxy

ingress 의 모든것 이라는 게시글에서도 다룬 ingress 페이지 인증/인가 시스템의 확장입니다.

addon 을 통한 추가적인 계정 통합을 위한 연동이 가능합니다. 구조는 동일하지만, 뒤에 인증/인가를 거치는 시스템을 더 고도화하여 구성이 가능하다는 특징이 있습니다.

연동 가능한 시스템들은 oauth2 를 이용한 추가적인 인증시스템 구성

oauth2-proxy

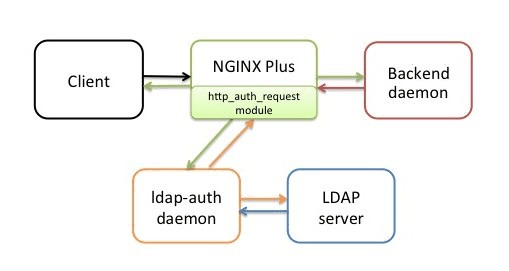

AD/LDAP 서버 구성을 통한 인증시스템 구성

https://github.com/dignajar/another-ldap

등이 존재합니다. 현재 구성해본 시스템으로는 oauth2 proxy가 아닌 another ldap 을 이용한 AD계정의 연동이 있습니다만, 자세한 내용을 다룰수는 없지만 인증 과정자체를 이해하면 어떤 시스템이든 연동자체가 가능하다는 개념을 이해하면 될것같습니다.


authenticate

생성하는 ingress 의 annotation에 auth-url , auth-response-headers, auth-snippet 구성등을 통해 인증서버 경유를 통하게 구성이 가능합니다.

현재 구성된 Keycloak 기반 인증시스템 에서도 동일한 구성을 통해 인증/인가 시스템 구성이 가능합니다.

아래는 구성된 Prometheus 와 Thanos 도메인에 간단한 응답을 보내 응답을 받는 코드입니다. 현재 prometheus 서버에는 HTTP Auth 가 적용되어있고, Thanos 서버는 적용되어있지 않습니다.

import requests from requests.auth import HTTPBasicAuth # Prometheus/Thanos API 도메인 설정 thanos_domain = "http://<>/api/v1/query" prometheus_domain = "http:/<>/api/v1/query" promql_query = 'count(up{job="node-exporter"} == 1)'  # 첫 번째 PromQL 쿼리 # 헤더에 넣을 ID와 비밀번호 설정 username = "<>"  # 사용자 ID password = "<>"  # 사용자 비밀번호 # # Prometheus/Thanos API 쿼리 함수 def query_thanos(promql_query):    response = requests.get(thanos_domain, params={'query': promql_query})    if response.status_code == 200:        return response.json()['data']['result']    else:        print(f"Error querying Prometheus: {response.status_code}, {response.text}")        return None def query_prometheus(promql_query):    response = requests.get(prometheus_domain, params={'query': promql_query}, auth=HTTPBasicAuth(username, password))    if response.status_code == 200:        return response.json()['data']['result']    else:        print(f"Error querying Prometheus: {response.status_code}, {response.text}")        return None result = query_thanos(promql_query) print(f"Local Metrics: {promql_query}") print(result) result = query_prometheus(promql_query) print(f"Local Metrics: {promql_query}") print(result)

Grafana에서도, Data Source의 Authentication에서 Basic Authentication에 User / Password를 저장할경우 동일한 결과를 응답받을수 있습니다.

Nginx Error redirection

https://github.com/kubernetes/ingress-nginx/tree/main/docs/examples/customization/custom-errors

프로젝트 활용

redirect pages

tree ㄴ404.html ㄴ500.html ㄴ503.html

custom 할 pages 직접 html 구현

Dockerfile

FROM quay.io/kubernetes-ingress-controller/custom-error-pages-amd64:0.4 COPY www /www

Readme

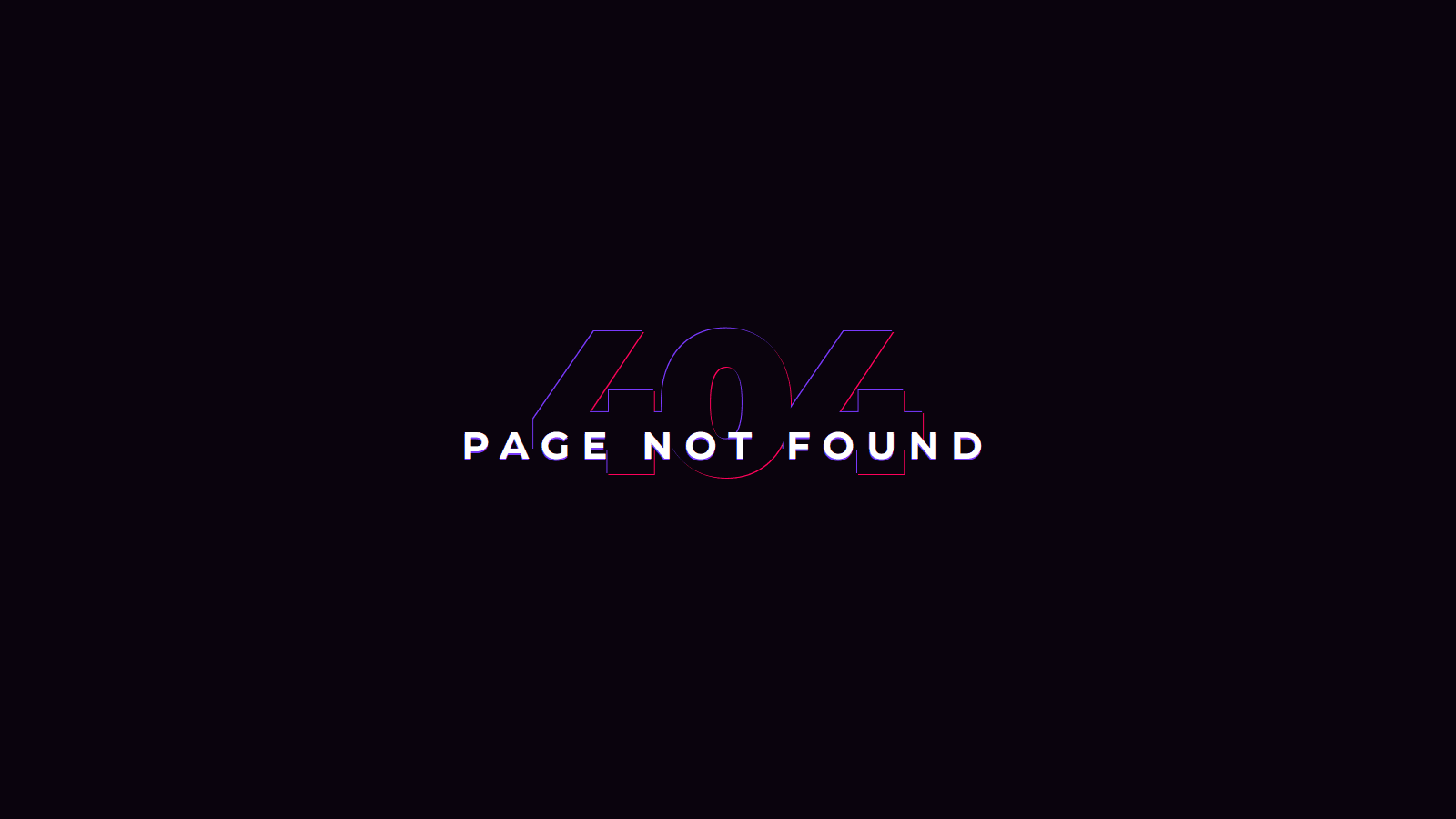

404 Screenshot

# custom-nginx-ingress-errors Assets to build a container to provide a custom default backend to the nginx-ingress Kubernetes Ingress controller ## Editing Error Pages The container has a set of error HTML and JSON files that are returned based on the error code. These files are stored in the `www/` directory and are copied to the `/www/` directory in the container. 1. Fork this repo, modify the error pages as you see fit. 2. Connect to Docker Hub/Quay.io to build an image you have access to. 3. Modify the `k8s-deployment.yaml` file to point to your custom built image. ## Deploying a custom default-backend for Nginx Ingress Note: This is for the Kubernetes Nginx Ingress, not the one made by Nginx. If you haven't deployed it yet, here ya go: https://kubernetes.github.io/ingress-nginx/deploy/ These instructions assume that you deployed this in the default `ingress-nginx` namespace. 1. Modify the `k8s-deployment.yaml` file to point to your custom built image, or use it as is for some snazzy error pages 2. Deploy to the Kubernetes cluster: `kubectl apply -f k8s-deployment.yaml` 3. Modify the `ingress-nginx/ingress-nginx-controller` Deployment and set the value of the `--default-backend-service` flag to the name of the newly created error backend, which should be `ingress-nginx/nginx-errors` by default. 4. Edit the `ingress-nginx/nginx-configuration` ConfigMap and add the key:value pair of `"custom-http-errors": "404,500,503"` 5. ?????? 6. PROFIT!!!!1

deployment

--- apiVersion: v1 kind: Service metadata: name: nginx-errors namespace: ingress-nginx labels: app.kubernetes.io/name: nginx-errors app.kubernetes.io/part-of: ingress-nginx spec: selector: app.kubernetes.io/name: nginx-errors app.kubernetes.io/part-of: ingress-nginx ports: - port: 80 targetPort: 8080 name: http --- apiVersion: apps/v1 kind: Deployment metadata: name: nginx-errors namespace: ingress-nginx labels: app.kubernetes.io/name: nginx-errors app.kubernetes.io/part-of: ingress-nginx spec: replicas: 1 selector: matchLabels: app.kubernetes.io/name: nginx-errors app.kubernetes.io/part-of: ingress-nginx template: metadata: labels: app.kubernetes.io/name: nginx-errors app.kubernetes.io/part-of: ingress-nginx spec: containers: - name: nginx-error-server image: kenmoini/custom-nginx-ingress-errors:latest ports: - containerPort: 8080 # Setting the environment variable DEBUG we can see the headers sent # by the ingress controller to the backend in the client response. # env: # - name: DEBUG # value: "true"

Ingress Nginx Controller

ingress 설정 파일에서의 configuration

controller-http-errors: "404, 503" config: ssl-redirect: "true" hsts: "false" use-forwarded-headers: "true" custom-http-errors: "503" proxy-body-size: 30m proxy-read-timeout: "3600" proxy-send-timeout: "3600" enable-underscores-in-headers: "true" ignore-invalid-headers: "false" http-snippet: | proxy_socket_keepalive on; watchIngressWithoutClass: true electionID: ingress-controller-leader extraArgs: default-backend-service: "ingress-nginx/nginx-errors"

Gateway API Examples For F5

gateway-fabric

쿠버네티스 코리아그룹 밋업 10주년 행사에서 들었던 nginx gateway api 세션에서의 데모들입니다.

간단하게 Examples 폴더 내에있는 기능들로만도 충분히 테스트가 가능합니다.

기존의 L7 레이어의 http/https 라우팅 이상의 기능들에 대해 테스트가 가능합니다.

(현재로서) ingress 와 유의미하게 구분되는 기능들의 경우 traffic splitting 과 cross namespace routing 인거같습니다.

ingress로서의 태생적 한계점을 벗어난 가시적인 기능인거같습니다.

다른 기능들도 추가적으로 검토해보면 좋을것같습니다.

advanced-routing

client-settings

cross namepsace routing

grpc routing

tls termination

등의 기능들이 존재합니다.

각 기능들을 Examples 폴더안에 있는 코드대로 실행해보면 조금 더 이해가 잘 되리라 생각합니다.
